Cat6, Cat6A & Cat7 8x8 Shielded RJ45 Modular Plugs Applications
Ideal for creating superior high performance CAT6a patch cables in 10Gigabit Ethernet applications where high density routers and switches are employed
Meets CAT6a performance requirements per ANSI/TIA-568-B.2-10
Robust shield termination and strain relief allow for one-step termination process
Optional slim line boot features integrated strain relief and latch protection
Selectively plated contacts with 50 micro-inches of gold
UL 94-V0 plastic components
RoHS compliant
Zoom the image with the mouse

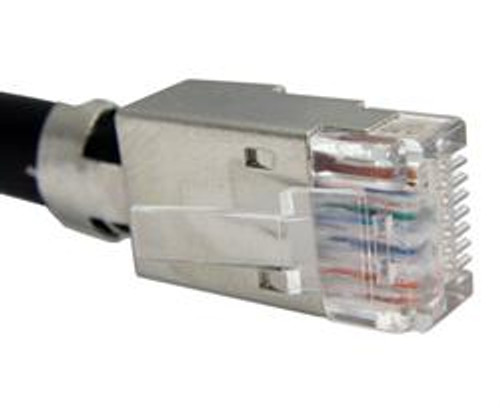

RJ45 for Cat6, Cat6a, and Cat7 Cable, Solid or Stranded Cable, Shielded (UL) CN1-022-8C6AS

(No reviews yet) Write a Review
$0.89
SKU:
CN1-022-8C6AS
Availability:
In stock Items usually ship within 24 hours, see our stock policy.
Weight:
0.01 LBS
Shipping:
Calculated at Checkout

UL Listed RJ45 Plugs for Cat6, Cat6a, and Cat7 Cable

Primus Cable believes in great networking products—they’re the key to building a great network. They hold their RJ45 cat6 connectors to high standards with the customer and their network in mind. Even with something as small as an RJ45 connector, they get it right—reliable and blazing fast. These RJ45 connectors are designed to work specifically with cat6, cat6a, and cat7 cable. These RJ45’s are gold plated and work with solid and stranded cable. They have 8 pins and 8 conductors (8p8c). The inserts are also included—they’re part of the design. The wire alignment insert provides an efficient cable assembly. Over time this will save time and money on any job.

Also featured on this RJ45 connector is a slim strain relief and shielding. The slim strain relief prevents snag tears and maintains the quality of the cable. Shielding your network prevents signal loss and electromagnetic interference.

Keep in mind, you’re going to need a special crimper, and we’ve got ‘em. https://www.rowewireless.com/cat6-a-crimping-tool-ratchet-type-for-modular-plugs-8p8c-rj45-tl1-4591/



Cat6, Cat6A & Cat7 8x8 Shielded RJ45 Modular Plugs Applications

  • Ideal for creating superior high performance CAT6a patch cables in 10Gigabit Ethernet applications where high density routers and switches are employed
  • Meets CAT6a performance requirements per ANSI/TIA-568-B.2-10
  • Robust shield termination and strain relief allow for one-step termination process
  • Optional slim line boot features integrated strain relief and latch protection
  • Selectively plated contacts with 50 micro-inches of gold
  • UL 94-V0 plastic components
  • RoHS compliant

Cat6, Cat6A & Cat7 8x8 Shielded RJ45 Modular PlugsSpecifications

RJ45 Housing

  • Width: 10.00mm
  • Height front: 6.60mm
  • Height rear: 7.92mm
  • Length: 21.49mm
  • Conductor Space: 1.50mm

Conductor Aligner

  • Width: 9.50mm
  • Height: 5.00mm
  • Conductor Space: 1.50mm

General

  • 3 Prong
  • 50u Gold Plating
  • 200 Mating Cycle Durability
  • Copper Alloy Shield Shell
Oversized end requires special crimper.


Call 614-410-3535 for more details
