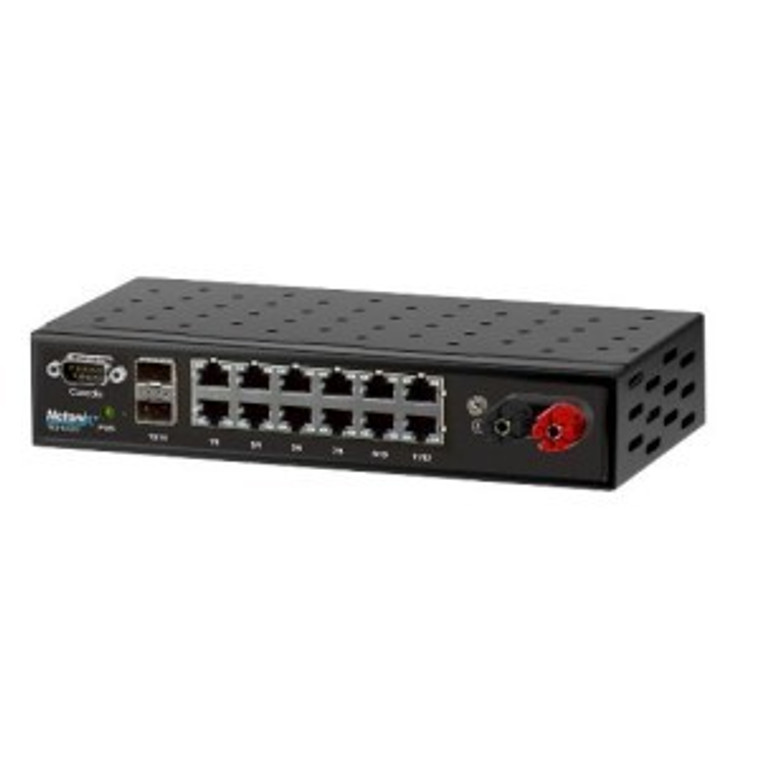

WS-12-DC

Netonix

SKU:

WS-12-DC

UPC:

858827005094

Availability:

Direct-ship from Manufacturer, call (614)410-3535 for availability

$399.95

(No reviews yet)

Weight:

3.00 LBS

Width:

13.00 (in)

Height:

8.00 (in)

Depth:

4.00 (in)

Current Stock:

Quantity:

Adding to cart… The item has been added

Note: This product is subject to fluctuations in availability. If you need to confirm stock, please contact us.

This unit is NOT our "SMART" DC to DC so it expect conditioned 48V DC input +/-. This switch is for sites that already have conditioned 48V. If you want the unit that accepts 9-60V DC input then you want the WS-12-250-DC

12 Port POE Manged PoE Switch + 2 SFP Uplink Ports

WARNING: These switches are not designed to operate on negative 48V site, using -48V DC will damage the switch as it does not have isolated input output power.

If you need negative DC input look at the WS-26-400-IDC or use an isolated DC power supply.

The Netonix® WISP Switch™ model WS-12-DC is designed specifically for the WISP industry with a rugged chassis and extended operating temperature range. It features a simple yet powerful user interface providing the software features WISPs need in a switch.

Configureable voltage / current
24V PoE Ports Pins 4,5 (+) Pins 7,8 (-) .75A	48V PoE Ports Pins 4,5 (+) Pins 7,8 (-) .75A	24VH PoE Ports Pins 1,2,4,5 (+) Pins 3,6,7,8 (-) 1.5A	48VH PoE Ports Pins 1,2,4,5 (+) Pins 3,6,7,8 (-) 1.5A
Ports 01-12	Ports 01-12	Ports 01-02**	Ports 01-04

**NOTE: Prior to Rev F 24VH was available on ports 1-4

Manufactured and Assembled in North America
Standard Desktop / Wall mount
Optional 19” rack mount kit
Dimensions 223 mm x 122 mm x 44 mm
Operating temperature -25 to 55°C (-13 to 131° F)
Serial console port
Passive PoE current sensors on each port

This model is for people who have conditioned 48V DC sites, it expects 48V +/- input but can safely operate on 37V to 53V input as it will condition 24V out from this input range but will pass out the input voltage as the 48V POE option.

Monitor DC voltage into the switch from your batteries.
