Mikrotik RB751G-2HnD 400MHz CPU 64MB 5GbLAN int b/g/n 2 chain
MikroTik
$79.95
(No reviews yet)
Write a Review
MikroTik
Mikrotik RB751G-2HnD 400MHz CPU 64MB 5GbLAN int b/g/n 2 chain

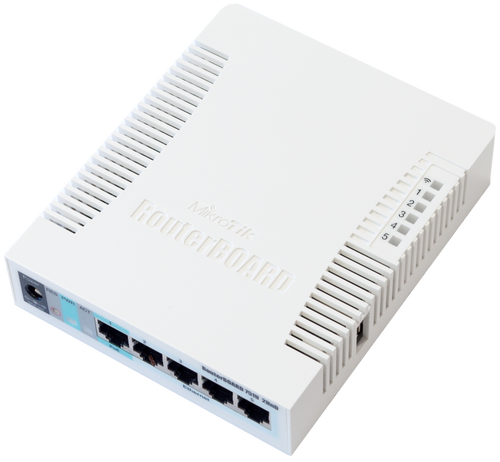

The RB751G-2HnD is the wireless SOHO Gigabit AP you have been waiting for. It has five Gigabit Ethernet ports, one USB 2.0 port and a high power 30dBi/1W 802.11b/g/n wireless AP with antennas built in.
It’s also possible to connect an external MMCX antenna to replace one of the built in antennas. The device is very small and will look good in any home or office, wall mounting anchor holes are provided.
Package contains RouterBOARD 751G-2HnD in a plastic case and power adapter.
Product specifications
| Details | |
|---|---|
| Product code | RB751G-2HnD |
| Current Monitor | No |
| TX power | 30dBm |
| CPU | Atheros AR7242 |
| Antenna gain | 2x2 MIMO PIF antennas, max gain 2.5dBi; external MMCX option |
| CPU speed | 400MHz |
| Max Power consumption | 13W |
| RAM | 64MB |
| LAN ports | 5 |
| Gigabit | Yes |
| MiniPCI | 0 |
| Integrated Wireless | 1 |
| Wireless standards | 802.11b/g/n |
| USB | 1 |
| Power Jack | 8-30V DC |
| 802.3af support | No |
| PoE | 8-30V DC on Ether1 |
| Voltage Monitor | No |
| PCB temperature monitor | No |
| CPU temperature monitor | No |
| Dimensions | 113x138x29mm |
| Operating System | RouterOS |
| Temperature range | -20C...+50C |
| RouterOS License | L4 |
Throughput results
| RB7xx/OmniTIK G Series @400Mhz (Ethernet only test) | 64 byte frames | 512 byte frames | 1518 byte frames | |||||
|---|---|---|---|---|---|---|---|---|
| IP Firewall | Conntrack | Mode | Mbps | Fps | Mbps | Fps | Mbps | Fps |
| off | off | Bridging | 49.66 | 97000 | 370.28 | 90400 | 949.66 | 78200 |
| on | off | Routing | 34 | 66400 | 266.24 | 65000 | 631.49 | 52000 |
| on | off | Bridging | 30.77 | 60100 | 234.7 | 57300 | 650.92 | 53600 |
| on | on | Routing | 25.6 | 50000 | 200.7 | 49000 | 479.69 | 39500 |
| on | on | Bridging | 18.02 | 35200 | 141.72 | 34600 | 386.18 | 31800 |
- Notes:
- All throughput tests done with Xena Networks specialized test system and RouterOS v5, according RFC2544, with Ethernet frame sizes 64, 512, 1518 bytes.Each board is tested with specified number of Ethernet interfaces, to ensure optimal load on hardware.
- Values in Italics indicate that the maximum possible throughput was reached, limited only by ethernet ports themselves.
