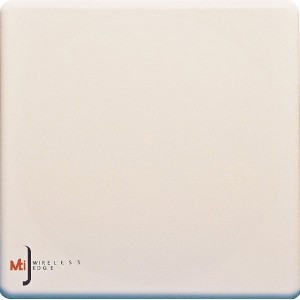

MTI Wireless Edge Ltd. 90° 4x4 MU-MIMO 4.9-5.9GHz

MTI Wireless Edge Ltd. 90° 4x4 MU-MIMO 4.9-5.9GHz

SKU:
MT-463042/ND/B/P
$169.00
(No reviews yet)
Weight:
13.00 LBS
Current Stock:
Adding to cart… The item has been added
Description

** SPECIFICALLY DESIGNED FOR USE WITH THE MIMOSA A5c **

ELECTRICAL



  • REGULATORY COMPLIANCE RoHS, CE 0682
  • FREQUENCY RANGE 4.9-5.9 GHz
  • GAIN 14 dBi ± 0.5 dB
  • VSWR 1.5 : 1 (typ), 2:1 (max)
  • POLARIZATION Double Dual Linear ± 45°
  • -3dB ELEVATION BEAMWIDTH 7º (typ)
  • -3 dB AZIMUTH BEAMWIDTH 90° (typ)
  • ELEVATION SIDELOBE LEVEL -12 dB (typ.)
  • F/B RATIO -25 dB (typ)
  • CROSS POLARIZATION -15 dB (typ)
  • PORT TO PORT ISOLATION 20dB (typ)

MECHANICAL

  • DIMENSIONS (LxWxD) 371 x 371 x 40mm (max)
  • CONNECTOR 4 x N-Type Female
  • WEIGHT 2 Kg (max)
  • MOUNTING KIT MT-120018
  • RADOME MATERIAL Plastic
  • BASE PLATE MATERIAL Aluminum with chemical conversion coating
  • POWER 6W (max)
  • INPUT IMPEDANCE 50 (ohm)
  • LIGHTNING PROTECTION DC Grounded

MOUNTING



  • Antenna Mounting Bracket Included
