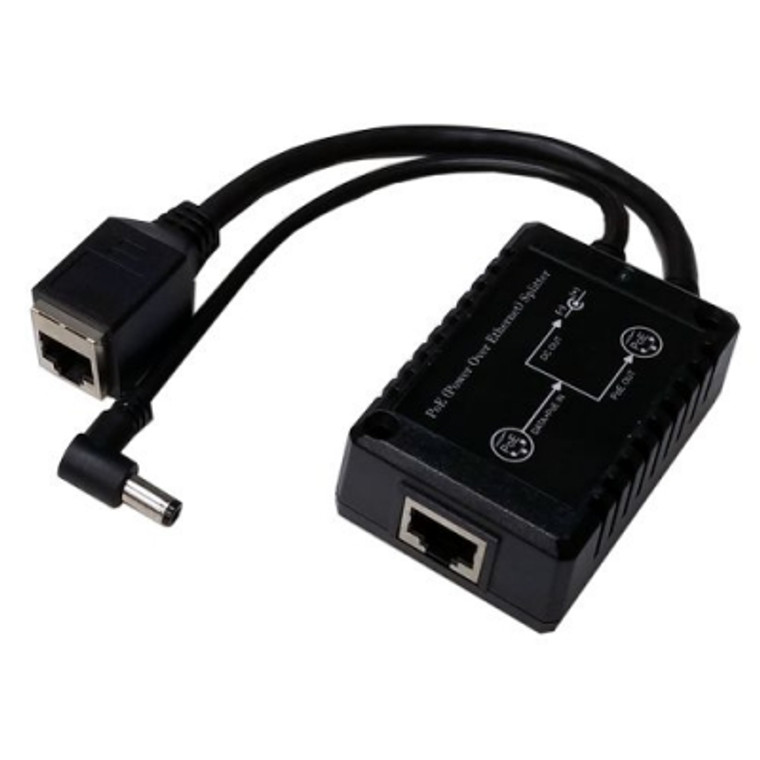

POE-PowerTap POE Power Tap on RJ45 Connector
The POE-MSPLT-48xxP-F is a unique splitter with dual outputs. It accepts 802.3af or 802.3at PoE and provides 48V PoE and 48V or 24V or 12VDC outputs concurrently so two separate devices can be powered. The DC output is provided on a standard 5.5mm/2.1- 2.5mm barrel connector and the Data/PoE output is provided on standard RJ45 network connector, each on a 6” cable. The DC connector is compatible with Tycon passive PoE injectors like POE-INJ-1000-S for ease of integration. In addition to being compatible with 10/100MB Ethernet speeds, inputs and outputs are isolated and the devices include protections for short circuit and overload.
