TP-DCDC-2448GD-HP 18-36VDC IN 56VDC OUT, 35W DC to DC Conv

SKU:
TP-DCDC-2448GD-HP
Availability:
In stock Items usually ship within 24 hours, see our stock policy.
$75.95
(No reviews yet)
Weight:
0.50 LBS
Current Stock:

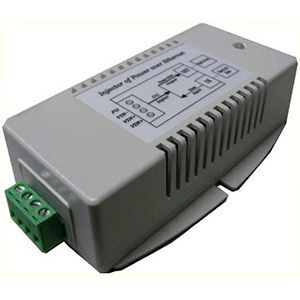

The TP-DCDC-2448GD-HP DC to DC converters offered by Tycon Power Systems are a low cost and high reliability solution for those requiring 35W 802.3af/at Power Over Ethernet voltage from a 18-36VDC battery system.

They have an integrated Gigabit Compatible 802.3af/at POE injector to apply the regulated 56VDC to the CAT5 Ethernet cable.

They accept data-in to a shielded RJ45 Jack and provide data-out and POE power on the shielded RJ45 output jack.

They work by supplying power on the unused Ethernet pins 4,5(V+) and 7,8(V-).

They have various protections for surge, short circuit and overload. The units have power output of 35W.

Features

  • Input Voltage 18-36VDC or 24-72VDC
  • POE Output voltage 56VDC
  • High Power 30W
  • Non-compliant POE
  • Dual DC Inputs for connecting 2 power sources
  • Integrated POE Inserter
  • Low self consumption power
  • Short Circuit, Over Current and Over Voltage Protection
  • High Temperature Operation

Applications

  • 24V and 48V Battery Systems
  • Wireless Access Points and Client Devices
  • IP Phone and Security Camera Systems
