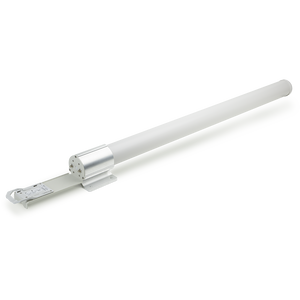

airMAX Omni 2.4 GHz, 10 dBi Antenna

airMAX Omni 2.4 GHz, 10 dBi Antenna

SKU:
AMO-2G10
|
UPC:
810354020957
Availability:
In stock items usually ship within 24-48 hours, unless marked Pre-Order!
$175.00
(No reviews yet)
Weight:
17.00 LBS
Width:
6.50 (in)
Height:
5.50 (in)
Depth:
42.00 (in)
Current Stock:
Adding to cart… The item has been added
Description

The airMAX® Omni Antenna is a carrier-class 2x2 dual-polarity MIMO omnidirectional antenna designed to seamlessly integrate with Rocket radios (Rocket sold separately). On the right is one example of how the airMAX Omni Antenna can be deployed in a Point-to-MultiPoint (PtMP) network.

The airMAX Omni Antenna provides powerful 360° coverage, 2x2 MIMO performance in Line-of-Sight (LoS) or Non-Line-of-Sight (NLoS) applications.

Additional Information
Dimensions (mm):
1030 x 122 x 84
Weight:
2.1 kg
Frequency Range:
2.35 GHz - 2.55 GHz
Gain:
10 dBi
Elevation Beamwidth:
12°
Max VSWR:
1.7:1
Downtilt:
4°
Wind Survivability:
125 mph
Wind Loading:
14 lb @ 100 mph
Polarization:
Dual-Linear
Cross-pol Isolation:
25 dB min.
ETSI Specification:
EN 302 326 DN2
Mounting:
Universal Pole Mount, RockeTM Bracket, and Weatherproof RF Jumpers Included
